Lines Starter Kit (9 Lines)

Nanoleaf Lines are smart backlit LED light bars that deliver stunning RGB illumination in a never-before-seen modular form factor. Ultra-lightweight light lines connect together at 60-degree angle increments to create intricate geometric designs on your wall.

Two colour zones per bar allow for complete customisation of over 16M colours and dynamic lighting animations that flow across your entire layout. Features like Rhythm music visualisation and Screen Mirror sync with your media to transform your space with immersive shows of colour and light.

Installation is simple with the included double-sided mounting adhesive tape and requires no additional tools or drilling. Control easily with physical buttons, voice commands, or the intuitive Nanoleaf App for an elevated smart home experience. Perfect for creating an ultramodern look in the living room, desk area, battle station, or bedroom as both ambience and art.

• Connect modular backlit smart light bars together to create infinite designs with incredible glowing colour changing animations
• Turn your favourite songs into a show of colour and light with the Rhythm Music Visualiser and feel every beat like never before
• Immerse yourself in an all-new gaming and movie night experience with Screen Mirror feature that syncs the colours from the screen to Lines
• Set the perfect ambience for any mood with 16M+ colour wheel
• Choose from 19 built-in Scenes or create your own unlimited RGB animations with 2 vibrant colour zones per line
• Works as Thread Border Router for instant reliable control of your other Thread-enabled products
• Patented LayoutDetect technology automatically registers your layout for a smooth multi-directional flow of colour
• Flexible control through voice assistants, Nanoleaf App (mobile, tablet or desktop), or manual buttons
• Hundreds of pre-saved Scenes available right out of the box. Connect to Wi-Fi for customised control
• Simple drill-free installation with the included Mounting Tape

Technical specifications:

Dimensions & Weight

• Height: Bar - 0.79 cm | Connector - 2.16 cm
• Width: Bar - 27.85 cm | Connector - 4 cm
• Depth: Bar - 2 cm | Connector - 3.46 cm
• Weight: 38.9 g
• Cable Length: 4.5 m

General

• Key Features: Music Sync, Screen Mirror
• Dimmability: Yes (via the Nanoleaf App, Voice Control, Controller)
• Luminous Flux per Line: 20 lumens
• Lifetime: 25,000 hours
• Communication Protocol: WiFi (2.4GHz b/g/n)
  NOTE: 5GHz networks are not compatible with Nanoleaf products
• Mounting Type: Via included double-sided tape or screw mounts (screws and anchors not included)
• The Nanoleaf App: Control via Nanoleaf App (Android & iOS) for mobile/tablet or Nanoleaf Desktop App (Windows & Mac)
• Compatibility: Apple HomeKit, Amazon Alexa, Google Assistant, IFTTT, Samsung SmartThings, Razer Chroma
• Usage: Indoor Only

Colour

• Colour Temperature: 1200K-6500K
• Colour Channel Configuration: RGBW
• Max Colours: More than 16 million
• Colour Zones: 2 colour zones per line
• Colour Rendering Index (CRI) : >80

Power

• Input Voltage: 100VAC - 240VAC 50/60Hz
• Output Voltage: 42 Vdc
• Max Power Supply Power: 42W
• Max Energy Consumption Per Line: 2W
• Max Lines Per PSU (42W): 18 Lines

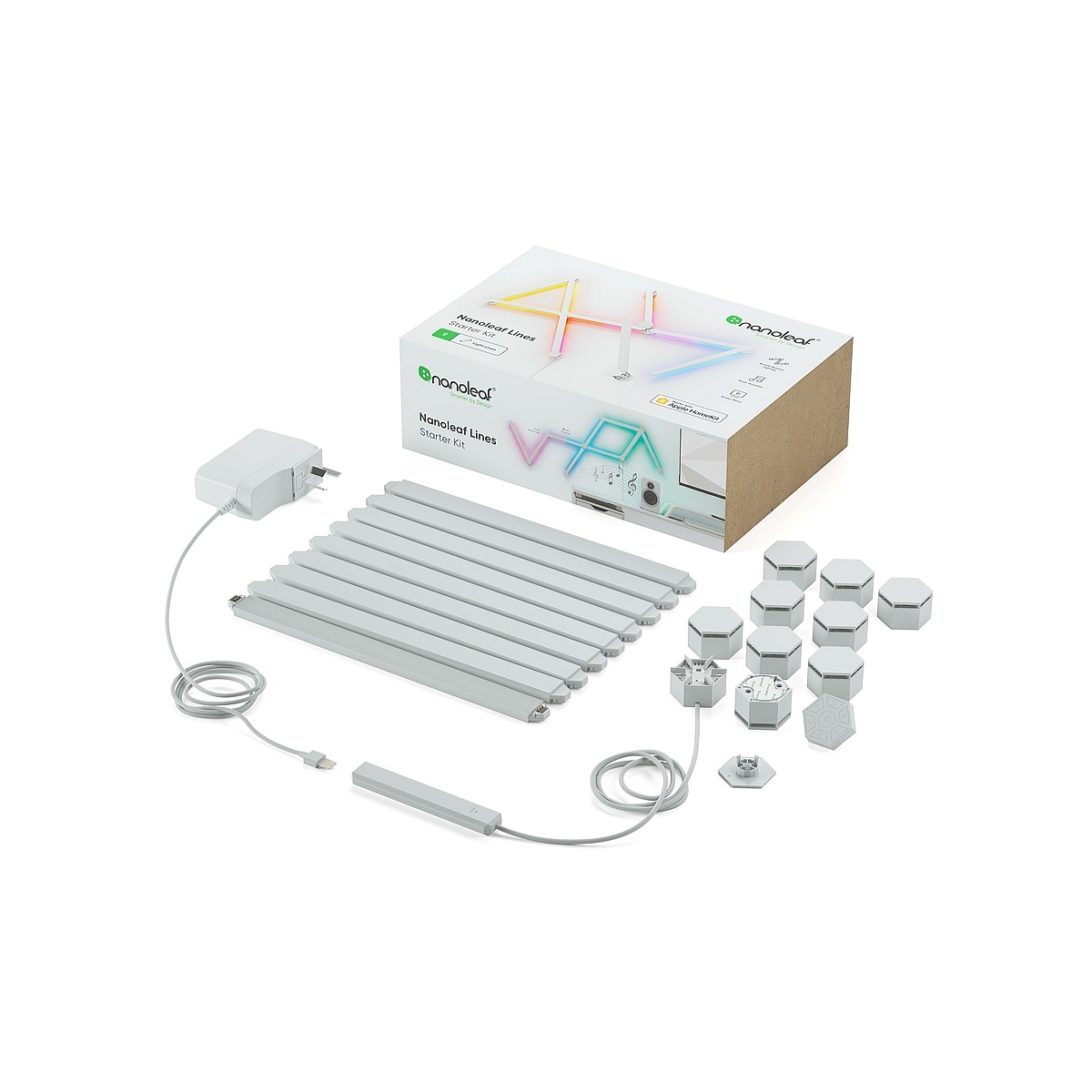

What's In the Box?

• 9 x Lines
• 9 x Mounting Connectors & Caps
• 10 x Mounting Plates with Tape
• 1 x Controller
• 1 x Processor & Power Connector
<
